Computer Arithmetic

Advanced Statistical Computing

Joong-Ho Won

Seoul National University

September 2023

versioninfo()
Julia Version 1.9.3
Commit bed2cd540a1 (2023-08-24 14:43 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: macOS (x86_64-apple-darwin22.4.0)
  CPU: 8 × Intel(R) Core(TM) i5-8279U CPU @ 2.40GHz
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-14.0.6 (ORCJIT, skylake)
  Threads: 2 on 8 virtual cores
using Pkg
Pkg.activate(pwd())
Pkg.instantiate()
Pkg.status()
Status `~/Dropbox/class/M1399.000200/2023/M1300_000200-2023fall/lectures/03-arith/Project.toml` (empty project)

Units of computer storage

  • Humans use decimal digits (why?)
  • Computers use binary digits (why?)
    • Bit = binary digit (coined by statistician John Tukey).
    • byte = 8 bits.
    • KB = kilobyte = \(10^3\) bytes; KiB = kibibyte = \(2^{10}\) bytes.
    • MB = megabyte = \(10^6\) bytes; MiB = mebibyte = \(2^{20}\) bytes.
    • GB = gigabyte = \(10^9\) bytes. Typical RAM size.
    • TB = terabyte = \(10^{12}\) bytes. Typical hard drive size.
    • PB = petabyte = \(10^{15}\) bytes.

Julia function Base.summarysize shows the amount of memory (in bytes) used by an object.

x = rand(100, 100)
Base.summarysize(x)
80040

varinfo() function prints all variables in workspace and their sizes.

varinfo() # similar to Matlab whos()
name size summary
Base Module
Core Module
Main Module
x 78.164 KiB 100×100 Matrix{Float64}

Storage of Characters

  • Plain text files are stored in the form of characters: .jl, .r, .c, .cpp, .ipynb, .html, .tex, …
  • ASCII (American Code for Information Interchange): 7 bits, only \(2^7=128\) characters.
# integers 0, 1, ..., 127 and corresponding ascii character
[0:127 Char.(0:127)]
128×2 Matrix{Any}:
   0  '\0'
   1  '\x01'
   2  '\x02'
   3  '\x03'
   4  '\x04'
   5  '\x05'
   6  '\x06'
   7  '\a'
   8  '\b'
   9  '\t'
  10  '\n'
  11  '\v'
  12  '\f'
   ⋮
 116  't'
 117  'u'
 118  'v'
 119  'w'
 120  'x'
 121  'y'
 122  'z'
 123  '{'
 124  '|'
 125  '}'
 126  '~'
 127  '\x7f'
  • Extended ASCII: 8 bits, \(2^8=256\) characters.
# integers 128, 129, ..., 255 and corresponding extended ascii character
# show(STDOUT, "text/plain", [128:255 Char.(128:255)])
[128:255 Char.(128:255)]
128×2 Matrix{Any}:
 128  '\u80'
 129  '\u81'
 130  '\u82'
 131  '\u83'
 132  '\u84'
 133  '\u85'
 134  '\u86'
 135  '\u87'
 136  '\u88'
 137  '\u89'
 138  '\u8a'
 139  '\u8b'
 140  '\u8c'
   ⋮
 244  'ô'
 245  'õ'
 246  'ö'
 247  '÷'
 248  'ø'
 249  'ù'
 250  'ú'
 251  'û'
 252  'ü'
 253  'ý'
 254  'þ'
 255  'ÿ'
  • Unicode: UTF-8, UTF-16 and UTF-32 support many more characters including foreign characters; last 7 digits conform to ASCII.
    • UTF-8 is the current dominant character encoding on internet.
  • Julia supports the full range of UTF-8 characters. You can type many Unicode math symbols by typing the backslashed LaTeX symbol name followed by tab.
# \beta-<tab>
β = 0.0
# \beta-<tab>-\hat-<tab>
β̂ = 0.0
0.0

See https://docs.julialang.org/en/v1/manual/unicode-input/

Integers: fixed-point number system

  • Fixed-point number system is a computer model for integers \(\mathbb{Z}\).
    • Remember that computer memory is finite whereas the cardinality of \(\mathbb{Z}\) is (countably) infinite.
    • Any representation of numbers in computer has to be an approximation.
  • Number of bits M to represent integers and method of representing negative numbers vary from system to system.
    • The integer type in R has \(M=32\) (packages such as ‘bit64’ support 64 bit integers).
    • C has (unsigned) char, int, short, long (and long long), whose sizes depend on the machine.
    • Matlab has (u)int8, (u)int16, (u)int32, (u)int64.
  • Julia has even more integer types:

https://en.wikibooks.org/wiki/Introducing_Julia/Types

Unsigned integers

  • Model for \(\mathbb{N} \cup \{0\}\).
  • For unsigned integers, the range is \([0,2^M-1]\).
  • Julia functions typemin(T) and typemax(T) give the lowest and highest representable number of a type T respectively
for t in [UInt8, UInt16, UInt32, UInt64, UInt128]
    println(t, '\t', typemin(t), '\t', typemax(t))
end
UInt8   0   255
UInt16  0   65535
UInt32  0   4294967295
UInt64  0   18446744073709551615
UInt128 0   340282366920938463463374607431768211455

Signed integers

  • Model of \(\mathbb{Z}\). Can do subtraction.

  • First bit (“most significant bit” or MSB) is the sign bit.

    • 0 for nonnegative numbers
    • 1 for negative numbers

  • Two’s complement representation for negative numbers

    • Set the sign bit to 1
    • Negate (0->1, 1->0) the remaining bits
    • Add to 1 to the result
    • Two’s complement representation of a negative integer \(x\) is the same as the unsigned integer \(2^M - x\).
@show typeof(5)
@show bitstring(5)
@show bitstring(-5)
@show bitstring(UInt64(Int128(2)^64 - 5)) == bitstring(-5)
@show bitstring(2 * 5) # shift bits of 5 to the left
@show bitstring(2 * -5); # shift bits of -5 to left
typeof(5) = Int64
bitstring(5) = "0000000000000000000000000000000000000000000000000000000000000101"
bitstring(-5) = "1111111111111111111111111111111111111111111111111111111111111011"
bitstring(UInt64(Int128(2) ^ 64 - 5)) == bitstring(-5) = true
bitstring(2 * 5) = "0000000000000000000000000000000000000000000000000000000000001010"
bitstring(2 * -5) = "1111111111111111111111111111111111111111111111111111111111110110"
  • Two’s complement representation respects modular arithmetic nicely. Addition of any two signed integers are just bitwise addition, possibly modulo \(2^M\)
    • \(M=4\) case:


Source: Signed Binary Numbers, Subtraction and Overflow

  • Range of representable integers by \(M\)-bit signed integer is \([-2^{M-1},2^{M-1}-1]\):
typemin(Int64), typemax(Int64)
(-9223372036854775808, 9223372036854775807)
for T in [Int8, Int16, Int32, Int64, Int128]
    println(T, '\t', typemin(T), '\t', typemax(T))
end
Int8    -128    127
Int16   -32768  32767
Int32   -2147483648 2147483647
Int64   -9223372036854775808    9223372036854775807
Int128  -170141183460469231731687303715884105728    170141183460469231731687303715884105727

BigInt

Julia BigInt type is arbitrary precision.

@show typemax(Int128)
@show typemax(Int128) + 1 # overflow!
@show BigInt(typemax(Int128)) + 1;
typemax(Int128) = 170141183460469231731687303715884105727
typemax(Int128) + 1 = -170141183460469231731687303715884105728
BigInt(typemax(Int128)) + 1 = 170141183460469231731687303715884105728

Overflow in integer arithmetic

R reports NA for integer overflow. Julia outputs the result according to modular arithmetic.

@show typemax(Int32)
@show typemax(Int32) + Int32(1); # modular arithmetics!
typemax(Int32) = 2147483647
typemax(Int32) + Int32(1) = -2147483648
using RCall
# The largest integer R can hold
R"""
.Machine$integer.max
"""
RObject{IntSxp}
[1] 2147483647
R"""
as.integer(big+1)
"""
RObject{IntSxp}
[1] NA

Reals: floating-point number system

Floating-point number system is a computer model for \(\mathbb{R}\).

  • Most computer systems adopt the IEEE 754 standard, established in 1985, for floating-point arithmetics.
    For the history, see an interview with William Kahan.

  • In the scientific notation, a real number is represented as \[ \pm d_1.d_2d_3 \cdots d_p \times b^e, \quad 0 \le d_i < b. \] Humans use the base \(b=10\) and digits \(d_i=0, 1, \dotsc, 9\).
    In computer, the base is \(b=2\) and the digits \(d_i\) are 0 or 1. The exponent \(e\) is between \(e_{\min}\) and \(e_{\max}\).

  • Normalized vs denormalized numbers. For example, decimal number 18 is \[ +1.0010 \times 2^4 \quad (\text{normalized})\] or, equivalently, \[ +0.1001 \times 2^5 \quad (\text{denormalized}).\]
  • In the floating-number system, computer stores
    • sign bit
    • the fraction (or mantissa, or significand) of the normalized representation (except some special cases)
    • the actual exponent plus a bias
      • Because \(e_{\min}\) is likely negative and \(e_{\max}\) is positive, the exponent requires a sign. IEEE 754 handles the sign of the exponent by subtracting the bias from the value of the exponent evaluated as an unsigned integer.
  • Julia provides Float16 (half precision, implemented in software), Float32 (single precision), Float64 (double precision), and BigFloat (arbitrary precision).

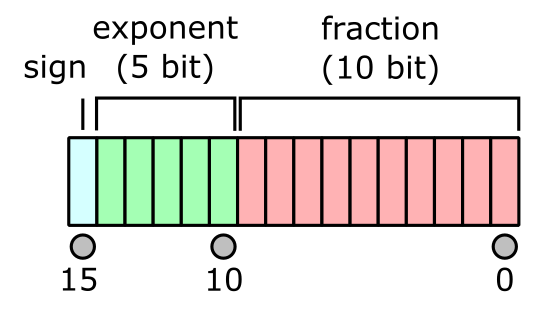

Half precision (Float16)

https://en.wikipedia.org/wiki/Half-precision_floating-point_format

  • In Julia, Float16 is the type for half precision numbers.

  • MSB is the sign bit.

  • 10 significand bits (fraction=mantissa), hence \(p=11\) (why?)

  • 5 exponent bits: \(e_{\max}=15\), \(e_{\min}=-14\), bias=15 = \(01111_2\) for encoding:

    • \(e_{\min} = \mathbf{00001_2} - 01111_2 = -14_{10}\)
    • \(e_{\max} = \mathbf{11110_2} - 01111_2 = 15_{10}\)

  • \(e_{\text{min}}-1\) and \(e_{\text{max}}+1\) are reserved for special numbers.

  • range of magnitude: \(10^{\pm 4}\) in decimal because \(\log_{10} (2^{15}) \approx 4\).

  • Precision: \(\log_{10}2^{11} \approx 3.311\) decimal digits. \[ (value) = (-1)^{b_{15}}\times 2^{(\sum_{j=1}^5 b_{15-j}2^{5-j}) - 15} \times \left( 1 + \sum_{i=1}^{10}\frac{b_{10-i}}{2^i}\right) \]

println("Half precision:")
@show bitstring(Float16(5)) # 5 in half precision
@show bitstring(Float16(-5)); # -5 in half precision
Half precision:
bitstring(Float16(5)) = "0100010100000000"
bitstring(Float16(-5)) = "1100010100000000"

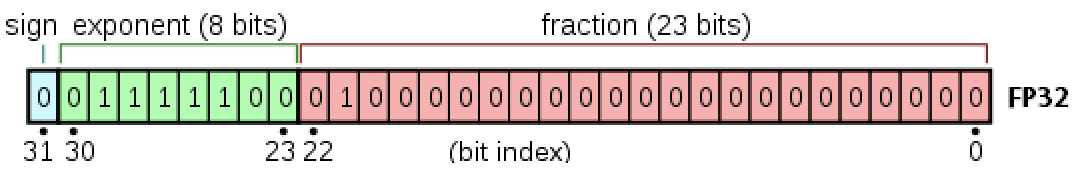

Single precision (Float32)

https://en.wikipedia.org/wiki/Single-precision_floating-point_format

  • In Julia, Float32 is the type for single precision numbers.

  • MSB is the sign bit.

  • 23 significand bits (\(p=24\)).

  • 8 exponent bits: \(e_{\max}=127\), \(e_{\min}=-126\), bias=127.

  • \(e_{\text{min}}-1\) and \(e_{\text{max}}+1\) are reserved for special numbers.

  • range of magnitude: \(10^{\pm 38}\) in decimal because \(\log_{10} (2^{127}) \approx 38\).

  • precision: \(\log_{10}(2^{24}) \approx 7.225\) decimal digits.

println("Single precision:")
@show bitstring(Float32(5)) # 5 in single precision
@show bitstring(Float32(-5)); # -5 in single precision
Single precision:
bitstring(Float32(5)) = "01000000101000000000000000000000"
bitstring(Float32(-5)) = "11000000101000000000000000000000"

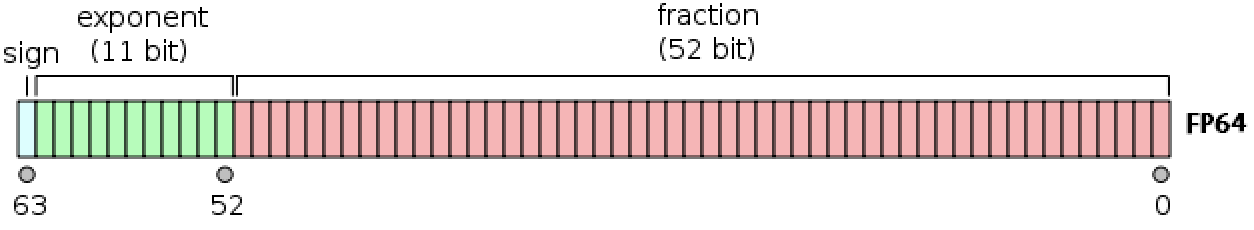

Double precision (Float64)

https://en.wikipedia.org/wiki/Double-precision_floating-point_format

  • Double precision (64 bits = 8 bytes) numbers are the dominant data type in scientific computing.

  • In Julia, Float64 is the type for double precision numbers.

  • MSB is the sign bit.

  • 52 significand bits (\(p=53\)).

  • 11 exponent bits: \(e_{\max}=1023\), \(e_{\min}=-1022\), bias=1023.

  • \(e_{\text{min}}-1\) and \(e_{\text{max}}+1\) are reserved for special numbers.

  • range of magnitude: \(10^{\pm 308}\) in decimal because \(\log_{10} (2^{1023}) \approx 308\).

  • precision to the \(\log_{10}(2^{53}) \approx 15.95\) decimal point.

println("Double precision:")
@show bitstring(Float64(5)) # 5 in double precision
@show bitstring(Float64(-5)); # -5 in double precision
Double precision:
bitstring(Float64(5)) = "0100000000010100000000000000000000000000000000000000000000000000"
bitstring(Float64(-5)) = "1100000000010100000000000000000000000000000000000000000000000000"

Special floating-point numbers

  • Exponent \(e_{\max}+1\) plus a zero mantissa means \(\pm \infty\).
@show bitstring(Inf) # Inf in double precision
@show bitstring(-Inf); # -Inf in double precision
bitstring(Inf) = "0111111111110000000000000000000000000000000000000000000000000000"
bitstring(-Inf) = "1111111111110000000000000000000000000000000000000000000000000000"

  • Exponent \(e_{\max}+1\) plus a nonzero mantissa means NaN. NaN could be produced from 0 / 0, 0 * Inf, …

  • In general NaN ≠ NaN bitwise. Test whether a number is NaN by isnan function.

@show bitstring(0 / 0) # NaN
@show bitstring(0 * Inf); # NaN
bitstring(0 / 0) = "1111111111111000000000000000000000000000000000000000000000000000"
bitstring(0Inf) = "1111111111111000000000000000000000000000000000000000000000000000"
  • Exponent \(e_{\min}-1\) with a zero mantissa represents the real number 0 (“exact zero”).
@show bitstring(0.0); # 0 in double precision
bitstring(0.0) = "0000000000000000000000000000000000000000000000000000000000000000"
  • Exponent \(e_{\min}-1\) with a nonzero mantissa are for numbers less than \(b^{e_{\min}}\) (subnormal numbers).
  • Numbers are denormalized in the range \((0,b^{e_{\min}})\) – gradual underflow.
  • For example, in half-precision, \(e_{\min}=-14\) but \(2^{-24}\) is represented by \(0.0000000001_2 \times 2^{-14}\).

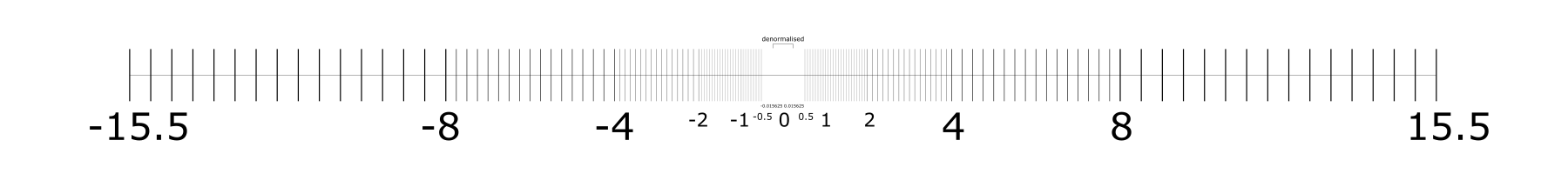

  • If floating point numbers are all normalized, the spacing between 0 and \(b^{e_{\min}}\) is just \(b^{e_{\min}}\), whereas the spacing between \(b^{e_{\min}}\) and \(b^{e_{\min}+1}\) is \(b^{e_{\min}-p+1}\). With subnormal numbers, the spacing between 0 and \(b^{e_{\min}}\) can be \(b^{e_{\min}-p+1}\), which is consistent with the spacing just above \(b^{e_{\min}}\).
@show Float16(2^(-14))  # emin=-14
@show bitstring(Float16(2^(-14)));
@show Float16(2^(-24))  # emin=-14
@show bitstring(Float16(2^(-24))); # denormalized
Float16(2 ^ -14) = Float16(6.104e-5)
bitstring(Float16(2 ^ -14)) = "0000010000000000"
Float16(2 ^ -24) = Float16(6.0e-8)
bitstring(Float16(2 ^ -24)) = "0000000000000001"
@show nextfloat(Float16(0.0)) # next representable number
@show bitstring(nextfloat(Float16(0.0))); # denormalized
nextfloat(Float16(0.0)) = Float16(6.0e-8)
bitstring(nextfloat(Float16(0.0))) = "0000000000000001"

Rounding

  • Rounding is necessary whenever a number has more than \(p\) significand bits. Most computer systems use the default IEEE 754 round to nearest mode (also called ties to even mode). Julia offers several rounding modes, the default being RoundNearest.

  • “Round to nearest, ties to even” rule: rounds to the nearest value; if the number falls midway, it is rounded to the nearest value with an even least significant digit (i.e., zero; default for IEEE 754 binary floating point numbers)

  • For example, the number 1/10 cannot be represented accurately as a (binary) floating point number: \[ 0.1 = 1.10011001\dotsc_2 \times 2^{-4} \]
@show bitstring(0.1);  # double precision Float64
@show bitstring(0.1f0); # single precision Float32, 1001 gets rounded to 101(0)
@show bitstring(Float16(0.1)); # half precision Float16, 1001 gets rounded to 101(0)
bitstring(0.1) = "0011111110111001100110011001100110011001100110011001100110011010"
bitstring(0.1f0) = "00111101110011001100110011001101"
bitstring(Float16(0.1)) = "0010111001100110"

Errors

Rounding (more fundamentally, finite precision) incurs errors in floating porint computation. If a real number \(x\) is represented by a floating point number \([x]\), then

  • Absolute error: \(| [x] - x |\)

  • Relative error: \(\frac{| [x] - x |}{|x|}\) (if \(x \neq 0\)).

Of course, we want to ensure that the error after a computation is small.

Machine epsilons

  • Floating-point numbers do not occur uniformly over the real number line

Source: What you never wanted to know about floating point but will be forced to find out

  • Same number of representible numbers in \((2^i, 2^{i+1}]\) as in \((2^{i+1}, 2^{i+2}]\). Within an interval, they are uniformly distributed.

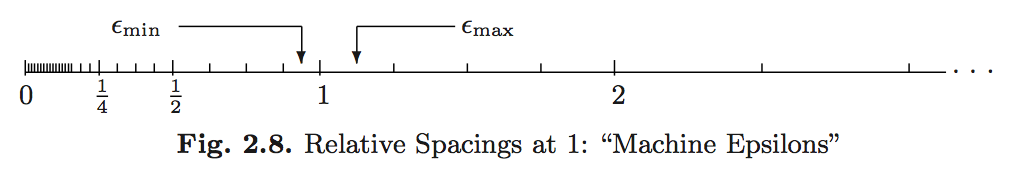

  • Machine epsilons are the spacings of numbers around 1:
    • \(\epsilon_{\max}\) = (smallest positive floating point number that added to 1 will give a result different from 1) = \(\frac{1}{2^p} + \frac{1}{2^{2p-1}}\)
    • \(\epsilon_{\min}\) = (smallest positive floating point number that subtracted from 1 will give a result different from 1) = \(\frac{1}{2^{p+1}} + \frac{1}{2^{2p}}\).
    • That is, \(1 + \epsilon_{\max}\) is the number in the “midway” between 1 and the floating point number right next to it, etc.

Source: Computational Statistics, James Gentle, Springer, New York, 2009.

Caution: the definition of \(\epsilon_{\max}\) and \(\epsilon_{\min}\) in this book is different from the lecture note.

  • Any real number in the interval \(\left[1 - \frac{1}{2^{p+1}}, 1 + \frac{1}{2^p}\right]=[1.111\dotsb1|1_2 \times 2^{-1}, 1.000\dotsb 0|1 \times 2^0]\) is represented by a floating point number \(1 = 1.00\dotsc 0_2 \times 2^0\) (assuming the “ties to even” rule: consider \(p=2\) case).

  • Adding \(\frac{1}{2^p}\) to 1 won’t reach the next representable floating point number \(1.00\dotsc 01_2 \times 2^0 = 1 + \frac{1}{2^{p-1}}\). Hence \(\epsilon_{\max} > \frac{1}{2^p} = 1.00\dotsc 0_2 \times 2^{-p}\).

  • Adding the floating point number next to \(\frac{1}{2^p} = 1.00\dotsc 0_2 \times 2^{-p}\) to 1 WILL result in \(1.00\dotsc 01_2 \times 2^0 = 1 + \frac{1}{2^{p-1}}\), hence \(\epsilon_{\max} = 1.00\dotsb 01_2 \times 2^{-p} = \frac{1}{2^p} + \frac{1}{2^{p+p-1}}\).

  • Subtracting \(\frac{1}{2^{p+1}}\) from 1 results in \(1-\frac{1}{2^{p+1}} = \frac{1}{2} + \frac{1}{2^2} + \dotsb + \frac{1}{2^p} + \frac{1}{2^{p+1}}\), which is represented by the floating point number \(1.00\dotsb 0_2 \times 2^{0} = 1\) by the “ties to even” rule. Hence \(\epsilon_{\min} > \frac{1}{2^{p+1}}\).

  • The smallest positive floating point number larger than \(\frac{1}{2^{p+1}}\) is \(\frac{1}{2^{p+1}} + \frac{1}{2^{2p}}=1.00\dotsc 1_2 \times 2^{-p-1}\). Thus \(\epsilon_{\min} = \frac{1}{2^{p+1}} + \frac{1}{2^{2p}}\).

Machine precision

  • Machine epsilon is often called the machine precision.

  • If a positive real number \(x \in \mathbb{R}\) is represented by \([x]\) in the floating point arithmetic, then \[ [x] = \left( 1 + \sum_{i=1}^{p-1}\frac{d_{i+1}}{2^i}\right) \times 2^e. \]

Thus \(x - \frac{2^e}{2^p} \le [x] \le x + \frac{2^e}{2^p}\), and \[ \begin{split} \frac{| x - [x] |}{|x|} &\le \frac{2^e}{2^p|x|} \le \frac{2^e}{2^p}\frac{1}{[x]-2^e/2^p} \\ &\le \frac{2^e}{2^p}\frac{1}{2^e(1-1/2^p)} \quad (\because [x] \ge 2^e) \\ &\le \frac{2^e}{2^p}\frac{1}{2^e}(1 + \frac{1}{2^{p-1}}) \\ &= \frac{1}{2^p} + \frac{1}{2^{2p-1}} = \epsilon_{\max}. \end{split} \] That is, the relative error of the floating point representation \([x]\) of real number \(x\) is bounded by \(\epsilon_{\max}\).

@show 2^(-53) + 2^(-105);   # epsilon_max for Float64
@show 1.0 + 2^(-53);
@show 1.0 + (2^(-53) + 2^(-105));
@show 1.0 + 2^(-53) + 2^(-105);  # why is the result?  See "Catastrophic cancellation"

@show Float32(2^(-24) + 2^(-47)); # epsilon_max for Float32
@show 1.0f0 + Float32(2^(-24));
@show 1.0f0 + Float32(2^(-24) + 2^(-47));
2 ^ -53 + 2 ^ -105 = 1.1102230246251568e-16
1.0 + 2 ^ -53 = 1.0
1.0 + (2 ^ -53 + 2 ^ -105) = 1.0000000000000002
1.0 + 2 ^ -53 + 2 ^ -105 = 1.0
Float32(2 ^ -24 + 2 ^ -47) = 5.960465f-8
1.0f0 + Float32(2 ^ -24) = 1.0f0
1.0f0 + Float32(2 ^ -24 + 2 ^ -47) = 1.0000001f0
@show 2^(-54) + 2^(-106);  # epsilon_min for Float64
@show 1 - (2^(-54) + 2^(-106))
@show bitstring(1.0)
@show bitstring(1 - (2^(-54) + 2^(-106)))
2 ^ -54 + 2 ^ -106 = 5.551115123125784e-17
1 - (2 ^ -54 + 2 ^ -106) = 0.9999999999999999
bitstring(1.0) = "0011111111110000000000000000000000000000000000000000000000000000"
bitstring(1 - (2 ^ -54 + 2 ^ -106)) = "0011111111101111111111111111111111111111111111111111111111111111"
"0011111111101111111111111111111111111111111111111111111111111111"

In Julia, eps(x) gives the distance between consecutive representable floating point values at x, i.e.,

eps(x) == max(x-prevfloat(x), nextfloat(x)-x)

which is roughly twice the \(\epsilon_{\max}\).

@show eps(Float32)  # machine epsilon for a floating point type, roughly twice our \epsilon_{\max}
@show eps(Float64)  # same as eps()
# eps(x) is the spacing after x
@show eps(100.0)
@show eps(0.0)
# nextfloat(x) and prevfloat(x) give the neighbors of x
@show x = 1.25f0
@show prevfloat(x), x, nextfloat(x)
@show bitstring(prevfloat(x)), bitstring(x), bitstring(nextfloat(x));
eps(Float32) = 1.1920929f-7
eps(Float64) = 2.220446049250313e-16
eps(100.0) = 1.4210854715202004e-14
eps(0.0) = 5.0e-324
x = 1.25f0 = 1.25f0
(prevfloat(x), x, nextfloat(x)) = (1.2499999f0, 1.25f0, 1.2500001f0)
(bitstring(prevfloat(x)), bitstring(x), bitstring(nextfloat(x))) = ("00111111100111111111111111111111", "00111111101000000000000000000000", "00111111101000000000000000000001")
  • In R, the variable .Machine contains numerical characteristics of the machine. double.eps and double.neg.eps are roughly twice our \(\epsilon_{\max}\) and \(\epsilon_{\min}\), respectively.
R"""
.Machine
"""
RObject{VecSxp}
$double.eps
[1] 2.220446e-16

$double.neg.eps
[1] 1.110223e-16

$double.xmin
[1] 2.225074e-308

$double.xmax
[1] 1.797693e+308

$double.base
[1] 2

$double.digits
[1] 53

$double.rounding
[1] 5

$double.guard
[1] 0

$double.ulp.digits
[1] -52

$double.neg.ulp.digits
[1] -53

$double.exponent
[1] 11

$double.min.exp
[1] -1022

$double.max.exp
[1] 1024

$integer.max
[1] 2147483647

$sizeof.long
[1] 8

$sizeof.longlong
[1] 8

$sizeof.longdouble
[1] 16

$sizeof.pointer
[1] 8

$longdouble.eps
[1] 1.084202e-19

$longdouble.neg.eps
[1] 5.421011e-20

$longdouble.digits
[1] 64

$longdouble.rounding
[1] 5

$longdouble.guard
[1] 0

$longdouble.ulp.digits
[1] -63

$longdouble.neg.ulp.digits
[1] -64

$longdouble.exponent
[1] 15

$longdouble.min.exp
[1] -16382

$longdouble.max.exp
[1] 16384

Overflow and underflow

  • For double precision, the range is \(\pm 10^{\pm 308}\). In most situations, underflow (magnitude of result is less than \(10^{-308}\)) is preferred over overflow (magnitude of result is larger than \(10^{+308}\)). Overflow produces \(\pm \inf\). Underflow yields zeros or subnormal numbers.

  • Example: the logit link function is \[p = \frac{\exp (x^T \beta)}{1 + \exp (x^T \beta)} = \frac{1}{1+\exp(- x^T \beta)}.\] The former expression can easily lead to Inf / Inf = NaN, while the latter expression leads to gradual underflow.

  • floatmin and floatmax functions gives largest and smallest non-subnormal number represented by the given floating point type.
for T in [Float16, Float32, Float64]
    println(T, '\t', floatmin(T), '\t', floatmax(T), '\t', typemin(T),
        '\t', typemax(T), '\t', eps(T))
end
Float16 6.104e-5    6.55e4  -Inf    Inf 0.000977
Float32 1.1754944e-38   3.4028235e38    -Inf    Inf 1.1920929e-7
Float64 2.2250738585072014e-308 1.7976931348623157e308  -Inf    Inf 2.220446049250313e-16
  • BigFloat in Julia offers arbitrary precision.
@show precision(BigFloat)
@show floatmin(BigFloat)
@show floatmax(BigFloat);
precision(BigFloat) = 256
floatmin(BigFloat) = 8.50969131174083613912978790962048280567755996982969624908264897850135431080301e-1388255822130839284
floatmax(BigFloat) = 5.875653789111587590936911998878442589938516392745498308333779606469323584389875e+1388255822130839282
@show BigFloat(π); # default precision for BigFloat is 256 bits
# set precision to 1024 bits
setprecision(BigFloat, 1024) do
    @show BigFloat(π)
end;
BigFloat(π) = 3.141592653589793238462643383279502884197169399375105820974944592307816406286198
BigFloat(π) = 3.141592653589793238462643383279502884197169399375105820974944592307816406286208998628034825342117067982148086513282306647093844609550582231725359408128481117450284102701938521105559644622948954930381964428810975665933446128475648233786783165271201909145648566923460348610454326648213393607260249141273724586997

Catastrophic cancellation

The result of computation is just the digits that represented the rounding.

  • Scenario 1 (benign cancellation): Addition or subtraction of two numbers of widely different magnitudes: \(a+b\) or \(a-b\) where \(a \gg b\) or \(a \ll b\). We lose the precision in the number of smaller magnitude. Consider \[ a = x.xxx ... \times 2^{30}, \quad b = y.yyy... \times 2^{-30} \] What happens when computer calculates \(a+b\)? We get \(a+b=a\)!
@show a = 2.0^30
@show b = 2.0^-30
@show a + b == a
@show bitstring(a)
@show bitstring(a + b);
a = 2.0 ^ 30 = 1.073741824e9
b = 2.0 ^ -30 = 9.313225746154785e-10
a + b == a = true
bitstring(a) = "0100000111010000000000000000000000000000000000000000000000000000"
bitstring(a + b) = "0100000111010000000000000000000000000000000000000000000000000000"

Analysis: suppose we want to compute \(x + y\), \(x, y > 0\). Let the relative error of \(x\) and \(y\) be \[ \delta_x = \frac{[x] - x}{x}, \quad \delta_y = \frac{[y] - y}{y} . \] What the computer actually calculates is \([x] + [y]\), which in turn is represented by \([ [x] + [y] ]\). The relative error of this representation is \[ \delta_{\text{sum}} = \frac{[[x]+[y]] - ([x]+[y])}{[x]+[y]} . \] Recall that \(|\delta_x|, |\delta_y|, |\delta_{\text{sum}}| \le \epsilon_{\max}\).

We want to find a bound of the relative error of \([[x]+[y]]\) with respect to \(x+y\). Since \(|[x]+[y]| = |x(1+\delta_x) + y(1+\delta_y)| \le |x+y|(1+\epsilon_{\max})\), we have \[ \small \begin{split} | [[x]+[y]]-(x+y) | &= | [[x]+[y]] - [x] - [y] + [x] - x + [y] - y | \\ &\le | [[x]+[y]] - [x] - [y] | + | [x] - x | + | [y] - y | \\ &= |\delta_{\text{sum}}([x]+[y])| + |\delta_x x| + |\delta_y y| \\ &\le \epsilon_{\max}(x+y)(1+\epsilon_{\max}) + \epsilon_{\max}x + \epsilon_{\max}y \\ &\approx 2\epsilon_{\max}(x+y) \end{split} \] because \(\epsilon_{\max}^2 \approx 0\).

Thus \[ \frac{| [[x]+[y]]-(x+y) |}{|x+y|} \le 2\epsilon_{\max} \] approximately.

  • Scenario 2 (catastrophic cancellation): Subtraction of two nearly equal numbers eliminates significant digits. \(a-b\) where \(a \approx b\). Consider \[ a = x.xxxxxxxxxx1ssss \quad b = x.xxxxxxxxxx0tttt \] The result is \(1.vvvvu...u\) where \(u\) are unassigned digits.
a = 1.2345678f0 # rounding
@show bitstring(a) # rounding
b = 1.2345677f0
@show bitstring(b)
@show a - b # correct result should be 1f-7
@show bitstring(a - b)   # must be 1.0000...0 x 2^(-23)
@show Float32(1/2^23);
bitstring(a) = "00111111100111100000011001010001"
bitstring(b) = "00111111100111100000011001010000"
a - b = 1.1920929f-7
bitstring(a - b) = "00110100000000000000000000000000"
Float32(1 / 2 ^ 23) = 1.1920929f-7

Analysis: Let \[ [x] = 1 + \sum_{i=1}^{p-2}\frac{d_{i+1}}{2^i} + \frac{1}{2^{p-1}}, \quad [y] = 1 + \sum_{i=1}^{p-2}\frac{d_{i+1}}{2^i} + \frac{0}{2^{p-1}} . \]

  • \([x]-[y] = \frac{1}{2^{p-1}} = [[x]-[y]]\).

  • The true difference \(x-y\) may lie anywhere in \((0, \frac{1}{2^{p-2}}]\).

  • Relative error \[ \frac{|x-y -[[x]-[y]]|}{|x-y|} \] is unbounded – no guarantee of any significant digit!

  • Implications for numerical computation
    • Rule 1: add small numbers together before adding larger ones
    • Rule 2: add numbers of like magnitude together (paring). When all numbers are of same sign and similar magnitude, add in pairs so each stage the summands are of similar magnitude
  • Rule 3: avoid substraction of two numbers that are nearly equal
    • Example: in solving quadratic equation \(ax^2 + bx + c = 0\) with \(b > 0\) and \(b^2 - 4ac > 0\), the roots are \[ x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a} . \] If \(b \approx \sqrt{b^2 - 4ac}\), then a scenario 2 occurs. A resolution is to compute only one root \(x_1 = \frac{-b - \sqrt{b^2 - 4ac}}{2a}\) by the formula, and find the other root \(x_2\) using the relation \(x_1x_2 = c/a\).

Algebraic laws

Floating-point numbers may violate many algebraic laws we are familiar with, such associative and distributive laws. See the example in the Machine Epsilon section and HW1.

Coditioning

Consider solving a linear system \(Ax=b\):

\[ \begin{bmatrix} 1.000 & 0.500 \\ 0.667 & 0.333 \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \end{bmatrix} = \begin{bmatrix} 1.500 \\ 1.000 \end{bmatrix} , \]

whose solution is \((x_1, x_2) = (1.000, 1.000)\).

A=[1.0 0.5; 0.667 0.333]; b = [1.5, 1.0]; A\b
2-element Vector{Float64}:
 0.9999999999998335
 1.000000000000333

If we perturb \(b\) by 0.001, i.e., solve

\[ \begin{bmatrix} 1.000 & 0.500 \\ 0.667 & 0.333 \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \end{bmatrix} = \begin{bmatrix} 1.500 \\ 0.999 \end{bmatrix} , \]

then the solution changes to \((x_1, x_2) = (0.000, 3.000)\).

b1 = [1.5, 0.999]; A\b1
2-element Vector{Float64}:
 -1.6653345369377348e-13
  3.000000000000333

If we instead perturb \(A\) by 0.001, i.e., solve

\[ \begin{bmatrix} 1.000 & 0.500 \\ 0.667 & 0.334 \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \end{bmatrix} = \begin{bmatrix} 1.500 \\ 1.000 \end{bmatrix} , \]

then this time the solution changes to \((x_1, x_2) = (2.000, -1.000)\).

A1=[1.0 0.5; 0.667 0.334]; A1\b
2-element Vector{Float64}:
  2.0000000000001665
 -1.000000000000333

In other words, an input perturbation of order \(10^{-3}\) yield an output perturbation of order \(10^0\). Thats 3 orders of magnutide of relative change!

Floating point representation \([x]\) of a real number \(x\) may introduce such input perturbation easily. The perturbation of output of a problem with respect to the input is called conditioning.

  • Abstractly, a problem can be viewed as function \(f: \mathcal{X} \to \mathcal{Y}\) where \(\mathcal{X}\) is a normed vector space of data and \(\mathcal{Y}\) is a normed vector space of solutions.
    • The problem of solving \(Ax=b\) for fixed \(b\) is \(f: A \mapsto A^{-1}b\) with \(\mathcal{X}=\{M\in\mathbb{R}^{n\times n}: M \text{ is invertible} \}\) and \(\mathcal{Y} = \mathbb{R}^n\).
    • The combination of a problem \(f\) with a given data \(x\) is called a problem instance, or simply problem unless no confusion occurs.

  • A well-conditioned problem (instance) is one such that all small perturbations of \(x\) lead to only small changes in \(f(x)\).

  • An ill-conditioned problem is one such that some small perturbation of \(x\) leads to a large change in \(f(x)\).

  • The (relative) condition number \(\kappa=\kappa(\theta)\) of a problem is defined by \[ \kappa = \lim_{\delta\to 0}\sup_{\|\delta \theta\|\le \delta}\frac{\|\delta f\|/\|f(\theta)\|}{\|\delta \theta\|/\|\theta\|} , \] where \(\delta f = f(\theta + \delta \theta) - f(\theta)\).

  • For the problem of solving \(Ax=b\) for fixed \(b\), \(f: A \mapsto A^{-1}b\), it can be shown that the condition number of \(f\) is \[ \kappa = \|A\|\|A^{-1}\| =: \kappa(A) , \] where \(\|A\|\) is the matrix norm induced by vector norm \(\|\cdot\|\), i.e., \[ \|A\| = \sup_{x\neq 0} \frac{\|Ax\|}{\|x\|}. \]
  • To see this, recall \(f(A) = A^{-1}b = x\). Since \(b = Ax\) and the LHS is fixed, if a perturbation of the input \(A \to A + \delta A\) yields a perturbation of the output \(x \to x + \delta x\) or \(f \to f + \delta f\), then we have \[ 0 = (\delta A) x + A \delta x + (\delta A) \delta x \] or \[ \delta x = -A^{-1}(\delta A)x + o(\Vert \delta A \Vert) . \] That is, \(\delta f = f(A + \delta A) - f(A) = - A^{-1}(\delta A)A^{-1}b + o(\Vert \delta A \Vert)\).
  • Then \[ \begin{aligned} \kappa &= \lim_{\delta\to 0}\sup_{\|\delta A\|\le \delta}\frac{(\Vert A^{-1}(\delta A)A^{-1}b\Vert + o(\Vert \delta A \Vert)\Vert) / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} \\ &= \lim_{\delta\to 0}\sup_{\|\delta A\|\le \delta} \frac{\Vert A^{-1}(\delta A)A^{-1}b\Vert / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} + o(1) \\ &= \lim_{\delta\to 0}\sup_{\|\delta A\|\le \delta} \frac{\Vert A^{-1}(\delta A)A^{-1}b\Vert / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} . \end{aligned} \]

  • From the property of a matrix norm \(\|AB\| \leq \|A\|\|B\|\), \[ \frac{\Vert A^{-1}(\delta A)A^{-1}b\Vert / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} \le \frac{\Vert A^{-1} \Vert \Vert \delta A \Vert \Vert A^{-1}b\Vert / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} % = \Vert A^{-1} \Vert \Vert A \Vert , \] hence \(\kappa \le \Vert A^{-1} \Vert \Vert A \Vert\).

  • It can be shown that for any invertible \(A\) and \(b\), there exits a perturbation \(\delta A\) such that \[ \frac{\Vert A^{-1}(\delta A)A^{-1}b\Vert / \Vert A^{-1}b \Vert}{\Vert \delta A \Vert / \Vert A \Vert} = \Vert A^{-1} \Vert \Vert A \Vert . \]

  • It follows that \(\kappa \ge \Vert A^{-1} \Vert \Vert A \Vert\).

  • If Euclidean norm is used, then \[ \kappa(A) = \sigma_{\max}(A)/\sigma_{\min}(A), \] the ratio of the maximum and minimum singular values of \(A\).

In the above problem, the condition number is matrix \(A\) (w.r.t. Euclidean norm) is

using LinearAlgebra
LinearAlgebra.cond(A)
3611.5557231115513

Further readings
