Quadratic Programming

Advanced Statistical Computing

Joong-Ho Won

Seoul National University

November 2023

versioninfo()
Julia Version 1.9.3
Commit bed2cd540a1 (2023-08-24 14:43 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: macOS (x86_64-apple-darwin22.4.0)
  CPU: 8 × Intel(R) Core(TM) i5-8279U CPU @ 2.40GHz
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-14.0.6 (ORCJIT, skylake)
  Threads: 2 on 8 virtual cores
using Pkg
Pkg.activate(pwd())
Pkg.instantiate()
Pkg.status()
Status `~/Dropbox/class/M1399.000200/2023/M1300_000200-2023fall/lectures/17-qp/Project.toml`
  [1e616198] COSMO v0.8.8
  [f65535da] Convex v0.15.4
  [a93c6f00] DataFrames v1.6.1
  [2e9cd046] Gurobi v1.2.0
  [b99e6be6] Hypatia v0.7.3
  [b6b21f68] Ipopt v1.5.1
  [b8f27783] MathOptInterface v1.22.0
  [6405355b] Mosek v10.1.3
  [1ec41992] MosekTools v0.15.1
  [91a5bcdd] Plots v1.39.0
  [c946c3f1] SCS v2.0.0

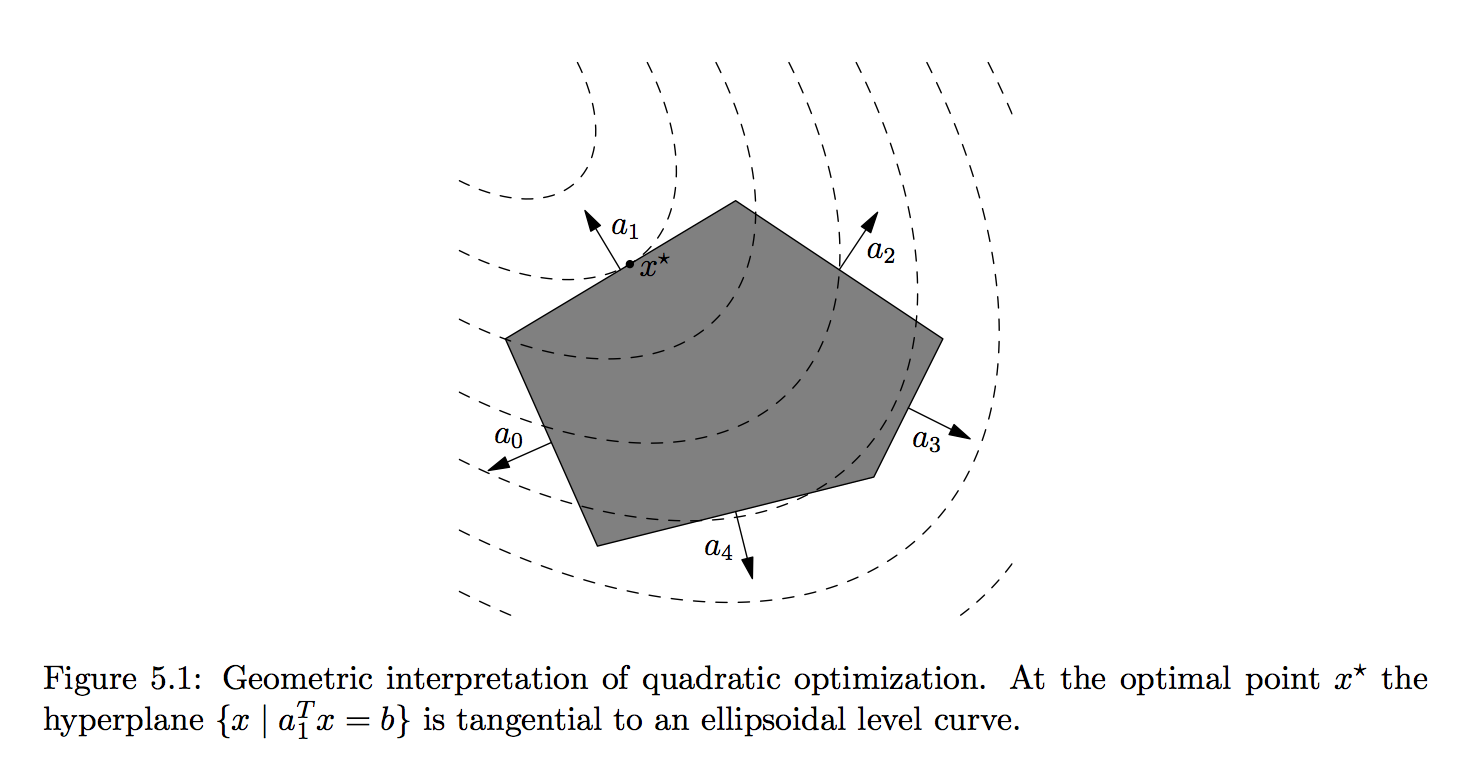

Quadratic programming (QP)

Source: Boyd and Vandeberghe

  • A (linearly constrained) quadratic program (QP) has quadratic objective function and affine constraint functions \[ \begin{array}{ll} &\text{minimize}& (1/2) \mathbf{x}^T \mathbf{P} \mathbf{x} + \mathbf{q}^T \mathbf{x} + r \\ &\text{subject to}& \mathbf{G} \mathbf{x} \leq \mathbf{h} \\ & & \mathbf{A} \mathbf{x} = \mathbf{b}, \end{array} \] where we require \(\mathbf{P} \in \mathbb{S}_+^d\) (why?). Apparently LP is a special case of QP with \(\mathbf{P} = \mathbf{0}_{n \times n}\).

Example 1: least squares

  • The least squares problem minimizes \(\|\mathbf{y} - \beta_0\mathbf{1} - \mathbf{X} \beta\|_2^2\), which obviously is an (unconstrained) QP. \[ \min_{\beta} \frac{1}{2}\|\mathbf{y} - \beta_0\mathbf{1} - \mathbf{X} \beta\|_2^2 = \frac{1}{2}\beta^T\mathbf{X}^T\mathbf{X}\beta - (\mathbf{y - \beta_0\mathbf{1}})^T\mathbf{X}\beta + \frac{1}{2}\|\mathbf{y} - \beta_0\mathbf{1}\|_2^2. \]
    • If the data is centered (\(\mathbf{1}^T\mathbf{X} = \mathbf{0}\)), then \(\beta_0 = \frac{1}{n}\mathbf{y}\).
  • Ridge regression. \[ \min_{\beta} \frac{1}{2}\|\mathbf{y} - \beta_0\mathbf{1} - \mathbf{X} \beta\|_2^2 + \frac{\lambda}{2}\|\beta\|_2^2 \]
    • \(\mathbf{P} = \mathbf{X}^T\mathbf{X} + \lambda \mathbf{I} \in \mathbb{S}_{++}^d\)
    • Usually the intercept \(\beta_0\) is not penalized.
    • If the data is centered (\(\mathbf{1}^T\mathbf{X} = \mathbf{0}\)), then \(\beta_0 = \frac{1}{n}\mathbf{y}\). (Why?)
using Statistics
using Random, LinearAlgebra, SparseArrays

Random.seed!(123) # seed

n, p = 100, 10
# Design matrix
X0 = randn(n, p)
X = [ones(n, 1) (X0 .- mean(X0 ,dims=1)) ./ std(X0, dims=1)]   # design matrix is standardized and includes intercept
# True regression coefficients (first 5 are non-zero)
β = [1.0; randn(5); zeros(p - 5)]
# Responses
y = X * β + randn(n)

# plot the true β
using Plots

plt = plot(1:p, β[2:end], line=:stem, marker=2, legend=:none)
xlabel!(plt, "coordinate")
ylabel!(plt, "beta_j")
title!(plt, "True beta")
using Convex, MathOptInterface
using Mosek, MosekTools

const MOI = MathOptInterface

# solve at a grid of λ
λgrid = 0:20:1000
ridgepath = zeros(length(λgrid), size(X, 2)) # each row is β̂ at a λ
β̂ridge = Variable(size(X, 2))
@time for i in 1:length(λgrid)
    λ = λgrid[i]
    # objective
    problem = minimize(sumsquares(y - X * β̂ridge) + λ * sumsquares(β̂ridge[2:end]))
    solver = Mosek.Optimizer()   # MOSEK this time!
    MOI.set(solver, MOI.RawOptimizerAttribute("LOG"), 0)  # keep silent
    solve!(problem, solver)
    ridgepath[i, :] = β̂ridge.value
end

plt = plot(collect(λgrid), ridgepath, legend=:none)
xlabel!(plt, "lambda")
ylabel!(plt, "beta_hat")
title!(plt, "Ridge")
  1.251917 seconds (807.74 k allocations: 66.132 MiB, 1.98% gc time, 71.62% compilation time)

Example 2: constrained least squares

  • Least squares with linear constraints. For example, nonnegative least squares (NLS) \[ \begin{array}{ll} &\text{minimize}& \frac 12 \|\mathbf{y} - \beta_0\mathbf{1} - \mathbf{X} \beta\|_2^2 \\ &\text{subject to}& \beta \geq \mathbf{0}. \end{array} \]
# Use COSMO solver
using COSMO
solver = COSMO.Optimizer()
## Use SCS solver
# using SCS
# solver = SCS.Optimizer()
## Use Mosek solver
# using Mosek, MosekTools
# solver = Mosek.Optimizer()
## Use Hypatia solver
# using Hypatia
# solver = Hypatia.Optimizer()


# Set up optimizaiton problem
β̂nonneg = Variable(size(X, 2))
problem = minimize(0.5sumsquares(y - X * β̂nonneg))
problem.constraints += β̂nonneg[2:end] >= 0

# Solve the problem
@time solve!(problem, solver)
------------------------------------------------------------------
          COSMO v0.8.8 - A Quadratic Objective Conic Solver
                         Michael Garstka
                University of Oxford, 2017 - 2022
------------------------------------------------------------------

Problem:  x ∈ R^{14},
          constraints: A ∈ R^{116x14} (1116 nnz),
          matrix size to factor: 130x130,
          Floating-point precision: Float64
Sets:     SecondOrderCone of dim: 101
          Nonnegatives of dim: 11
          SecondOrderCone of dim: 3
          ZeroSet of dim: 1
Settings: ϵ_abs = 1.0e-05, ϵ_rel = 1.0e-05,
          ϵ_prim_inf = 1.0e-04, ϵ_dual_inf = 1.0e-04,
          ρ = 0.1, σ = 1e-06, α = 1.6,
          max_iter = 5000,
          scaling iter = 10 (on),
          check termination every 25 iter,
          check infeasibility every 40 iter,
          KKT system solver: QDLDL
Acc:      Anderson Type2{QRDecomp},
          Memory size = 15, RestartedMemory,
          Safeguarded: true, tol: 2.0
Setup Time: 0.51ms

Iter:   Objective:  Primal Res: Dual Res:   Rho:
1   -2.4722e+00 7.6016e+00  6.0000e-01  1.0000e-01
25   6.3747e+01 2.0829e+00  8.8559e-01  1.0000e-01
50   2.1884e+02 9.9949e-01  4.4922e-02  1.0000e-01
75   2.1529e+02 8.2760e-01  1.2783e-02  1.0000e-01
100  4.4454e+02 7.3353e-01  3.9757e-02  8.2846e-03
125  3.6790e+02 3.2831e-01  8.5896e-01  1.1684e-03
150  3.9757e+02 4.0840e-01  4.2608e-04  1.1684e-03
175  3.8432e+02 3.5502e-01  2.1204e-05  1.1684e-03
200  3.8269e+02 3.4818e-01  5.6533e+00  7.7739e-03
225  3.7135e+02 2.8675e-01  1.4084e-03  7.7739e-03
250  3.8831e+02 2.7539e-01  9.8296e-05  7.7739e-03
275  4.0925e+02 1.8601e-01  3.1028e-04  7.7739e-03
300  4.2158e+02 2.0524e-01  3.1091e-04  7.7739e-03
325  4.2877e+02 1.8994e-01  3.4531e-05  7.7739e-03
350  4.3495e+02 1.4451e-01  6.2244e-04  7.7739e-03
375  4.3518e+02 1.6097e-01  2.8631e-04  7.7739e-03
400  4.4218e+02 1.6236e-01  3.0478e-04  7.7739e-03
425  4.6533e+02 1.5223e-01  5.9527e-04  7.7739e-03
450  4.8040e+02 1.1258e-01  8.7138e-05  7.7739e-03
475  4.7379e+02 9.0149e-02  8.9405e-05  7.7739e-03
500  4.7549e+02 8.7159e-02  4.2263e-05  7.7739e-03
525  4.8306e+02 7.6308e-02  4.9924e-06  7.7739e-03
550  4.8484e+02 7.3429e-02  7.9817e-05  7.7739e-03
575  5.0510e+02 1.0148e-01  3.5214e-03  7.7739e-03
600  5.0488e+02 5.2970e-02  2.7751e-04  7.7739e-03
625  5.1273e+02 2.1994e-02  2.1870e-04  7.7739e-03
650  5.1248e+02 1.8134e-02  4.3111e-05  7.7739e-03
675  5.1440e+02 1.2543e-02  1.5382e-05  7.7739e-03
700  5.1657e+02 1.4869e-02  6.1672e-05  7.7739e-03
725  5.1786e+02 1.0807e-02  1.0758e-05  7.7739e-03
750  5.1774e+02 1.0375e-02  6.7655e-06  7.7739e-03
775  5.1798e+02 1.0285e-02  1.2674e-05  7.7739e-03

------------------------------------------------------------------
>>> Results
Status: Solved
Iterations: 831 (incl. 56 safeguarding iter)
Optimal objective: 518
Runtime: 0.019s (19.35ms)

  0.037223 seconds (24.25 k allocations: 5.272 MiB, 22.73% compilation time)
plot(β[2:end], line=:stem, label="true beta")
plot!(β̂nonneg.value[2:end], line=:stem, title="Nonnegative LS", label="fitted")

Example 3: lasso

  • Lasso regression Tibshirani (1996), Donoho (1994) minimizes the least squares loss with \(\ell_1\) (lasso) penalty \[ \begin{array}{ll} \text{minimize}& \frac 12 \|\mathbf{y} - \beta_0 \mathbf{1} - \mathbf{X} \beta\|_2^2 + \lambda \|\beta\|_1, \end{array} \] where \(\lambda \ge 0\) is a tuning parameter. Writing \(\beta = \beta^+ - \beta^-\), the equivalent QP is \[ \small \begin{array}{ll} \text{minimize}& \frac 12 (\beta^+ - \beta^-)^T \mathbf{X}^T \left(\mathbf{I} - \frac{\mathbf{1} \mathbf{1}^T}{n} \right) \mathbf{X} (\beta^+ - \beta^-) + \mathbf{y}^T \left(\mathbf{I} - \frac{\mathbf{1} \mathbf{1}^T}{n} \right) \mathbf{X} (\beta^+ - \beta^-) + \lambda \mathbf{1}^T (\beta^+ + \beta^-) \\ \text{subject to}& \beta^+ \geq \mathbf{0}, \, \beta^- \geq \mathbf{0} \end{array} \] in \(\beta^+\) and \(\beta^-\); \(\mathbf{x} = (\beta^+, \beta^-)\).
using Mosek, MosekTools

# solve at a grid of λ
λgrid = 0:10:200
β̂path = zeros(length(λgrid), size(X, 2)) # each row is β̂ at a λ
β̂lasso = Variable(size(X, 2))
@time for i in 1:length(λgrid)
    λ = λgrid[i]
    # objective
    problem = minimize(0.5sumsquares(y - X * β̂lasso) + λ * norm(β̂lasso[2:end], 1))
    solver = Mosek.Optimizer()   # MOSEK this time!
    MOI.set(solver, MOI.RawOptimizerAttribute("LOG"), 0)  # keep silent
    solve!(problem, solver)
    β̂path[i, :] = β̂lasso.value
end

plt = plot(collect(λgrid), β̂path, legend=:none)
xlabel!(plt, "lambda")
ylabel!(plt, "beta_hat")
title!(plt, "Lasso")
 17.769835 seconds (21.27 M allocations: 1.975 GiB, 4.78% gc time, 97.45% compilation time)

Example 4: elastic net

  • Elastic net Zou and Hastie (2005) \[ \begin{array}{ll} &\text{minimize}& \frac 12 \|\mathbf{y} - \beta_0 \mathbf{1} - \mathbf{X} \beta\|_2^2 + \lambda (\alpha \|\beta\|_1 + (1-\alpha) \|\beta\|_2^2), \end{array} \] where \(\lambda \ge 0\) and \(\alpha \in [0,1]\) are tuning parameters.
# solve at a grid of λ
λgrid = 0:10:400
alpha = 0.5
elastipath = zeros(length(λgrid), size(X, 2)) # each row is β̂ at a λ
β̂elastic = Variable(size(X, 2))
@time for i in 1:length(λgrid)
    λ = λgrid[i]
    # objective
    problem = minimize(0.5*sumsquares(y - X * β̂elastic) +
        λ * (alpha*norm(β̂elastic[2:end],1) + (1-alpha)*sumsquares(β̂elastic[2:end])))
    solver = Mosek.Optimizer()   # MOSEK this time!
    MOI.set(solver, MOI.RawOptimizerAttribute("LOG"), 0)  # keep silent
    solve!(problem, solver)
    elastipath[i, :] = β̂elastic.value
end

plt = plot(collect(λgrid), elastipath, legend=:none)
xlabel!(plt, "lambda")
ylabel!(plt, "beta_hat")
title!(plt, "Elastic net")
  0.366815 seconds (491.97 k allocations: 42.703 MiB, 31.14% compilation time)

QP example 5: constrained lasso

  • (Linearly) constrained lasso \[\begin{eqnarray*} &\text{minimize}& \frac 12 \|\mathbf{y} - \beta_0 \mathbf{1} - \mathbf{X} \beta\|_2^2 + \lambda \|\beta\|_1 \\ &\text{subject to}& \mathbf{G} \beta \leq \mathbf{h} \\ & & \mathbf{A} \beta = \mathbf{b}, \end{eqnarray*}\] where \(\lambda \ge 0\) is a tuning parameter.

  • We have seen this example (zero-sum lasso) before.

using Mosek, MosekTools

# solve at a grid of λ
λgrid = 0:10:150
β̂conpath = zeros(length(λgrid), size(X, 2)) # each row is β̂ at a λ
β̂conlasso = Variable(size(X, 2))
@time for i in 1:length(λgrid)
    λ = λgrid[i]
    # objective
    problem = minimize(0.5sumsquares(y - X * β̂conlasso) + λ * norm(β̂conlasso[2:end], 1))
    problem.constraints += β̂conlasso[2:end] >= 0
    solver = Mosek.Optimizer()   # MOSEK this time!
    MOI.set(solver, MOI.RawOptimizerAttribute("LOG"), 0)  # keep silent
    solve!(problem, solver)
    β̂conpath[i, :] = β̂conlasso.value
end

plt = plot(collect(λgrid), β̂conpath, legend=:none)
xlabel!(plt, "lambda")
ylabel!(plt, "beta_hat")
title!(plt, "Constrained Lasso")
  0.115292 seconds (120.25 k allocations: 11.904 MiB)

QP example 7: robust regression

  • The Huber loss function \[\begin{eqnarray*} \phi(r) = \begin{cases} r^2 & |r| \le M \\ M(2|r| - M) & |r| > M \end{cases} \end{eqnarray*}\] is commonly used in robust statistics. The robust regression problem \[\begin{eqnarray*} &\text{minimize}& \sum_{i=1}^n \phi(y_i - \beta_0 - \mathbf{x}_i^T \beta) \end{eqnarray*}\] can be transformed to a QP \[\begin{eqnarray*} &\text{minimize}& \mathbf{u}^T \mathbf{u} + 2 M \mathbf{1}^T \mathbf{v} \\ &\text{subject to}& - \mathbf{u} - \mathbf{v} \leq \mathbf{y} - \mathbf{X} \beta \leq \mathbf{u} + \mathbf{v} \\ & & \mathbf{0} \leq \mathbf{u} \leq M \mathbf{1}, \mathbf{v} \geq \mathbf{0} \end{eqnarray*}\] in \(\mathbf{u}, \mathbf{v} \in \mathbb{R}^n\) and \(\beta \in \mathbb{R}^p\). Hint: write \(|r_i| = (|r_i| \wedge M) + (|r_i| - M)_+ = u_i + v_i\).

QP example 8: SVM

  • In two-class classification problems, we are given training data \((\mathbf{x}_i, y_i)\), \(i=1,\ldots,n\), where \(\mathbf{x}_i \in \mathbb{R}^n\) are feature vector and \(y_i \in \{-1, 1\}\) are class labels. Support vector machine (SVM) solves the optimization problem \[ \begin{array}{ll} &\text{minimize}& \sum_{i=1}^n \left[ 1 - y_i \left( \beta_0 + \sum_{j=1}^p x_{ij} \beta_j \right) \right]_+ + \lambda \|\beta\|_2^2, \end{array} \] where \(\lambda \ge 0\) is a tuning parameters. This is a QP (why?).
# convert to classification problem
Y = sign.(X * β + 5 * randn(n))

# solve at a grid of λ
λgrid = 0:10:100
β̂svmpath = zeros(length(λgrid), size(X, 2)) # each row is β̂ at a λ
β̂svm = Variable(size(X, 2))
@time for i in 1:length(λgrid)
    λ = λgrid[i]
    # objective
    problem = minimize(sum(pos(1 - Y .* (X * β̂svm))) + λ * sumsquares(β̂svm[2:end]))
    solver = Mosek.Optimizer()   # MOSEK this time!
    MOI.set(solver, MOI.RawOptimizerAttribute("LOG"), 0)  # keep silent
    solve!(problem, solver)
    β̂svmpath[i, :] = β̂svm.value
end

plt = plot(collect(λgrid), β̂svmpath, legend=:none)
xlabel!(plt, "lambda")
ylabel!(plt, "beta_hat")
title!(plt, "SVM")

  1.881291 seconds (2.51 M allocations: 167.199 MiB, 4.83% gc time, 93.43% compilation time)
